Main Character and Function

All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.
The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.

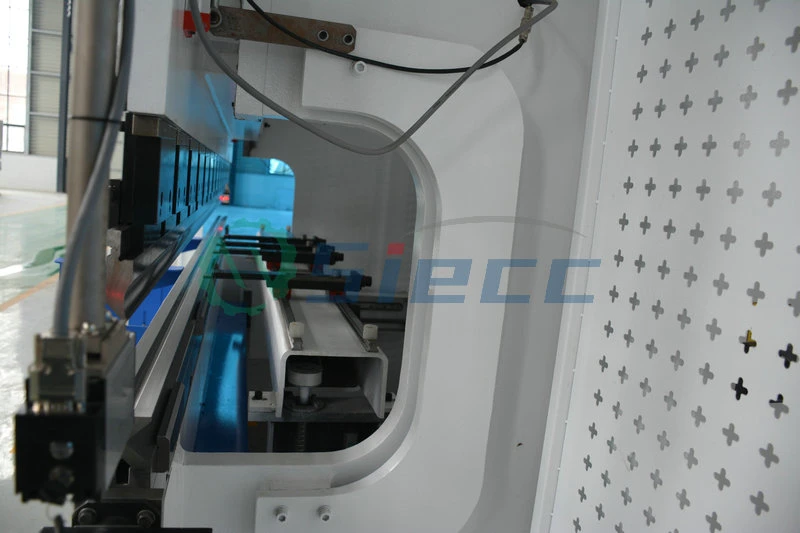

The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge. The advantage design and produce style can ensure the machine usage and high precision. The main produce procedure as below(all process under strictly inspection)
Plate stock-------physical and chemical inspection-------Plate Pre-treatment (Rust-Cleaning) ------- CNC flame Cutting-------Cutting the welded joint-------Group Welding-------Gas Shielded Welding-------Ageing treatment-------Milling Planer working-------The Assembly of finished products

The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.
The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, Upright Column, Crossbeam and RAM are good and high in design rigidity. Little deformation between the working table and RAM when work to guarantee good straightness and uniformity in angle.

Machine's main components under guaranteed quality or trustable company

The motor and electronic system elements are all composed from Siemens or Schneider
Dies can be designed under clients' requirement. The machine will be equipped standard molds the drawing will be sent. And the non-standard molds can be designed if the clients can provide the dies drawing or the workingpieces, we will design. The upper mold can be done in section.
We use Germany Schneider Stroke Button with high good durable stability, the stroke will be worked stable or be suspending without any sudden down movement which is serious dangerous.
Oil pump can be used from China chengjie enterprise who is used in China's Aircraft industry. Or we can use Germany ECKERLER enterprises.
The seal will be from USA Parker or Japan Valqua company.
The hydraulic system and valve will be from USA OMG or Germany BOSCH company.
The security protection equipment: The design always care about the worker security when operation both working or checking stationary. We equipped both side magnetic door to avoid any penetration inside. At the back, we will provide 3 Section close door with the middle door moveable and the power will be off when the door open, power on when the door close. The light curtain is useful components to aware any finger in dangerous position.

CNC/NC system and control

SIECC has much experience in CNC Press Brake. Our sales machine including CYBELEC 8 Axis automatic Electronic-Hydraulic synchronization machine. We can design different requirement for axis control with both 3D and touch-screen needs. The CNC including torsion synchronization and also Electro-hydraulic synchronization two kinds and also two linked press brake under electro-hydraulic or both mechanical synchronization.
SIECC always can find out the most cost-effective way between so many normal system brand like ESTUN/DELEM/CYBELEC.
Main Parameter
Nominal force of the ram2000KNS
Table Length3200MM
Upright column Distance2440MM
Throat Depth400MM
Max. Stroke of Ram200MM
Max. Open height between the table and Ram460MM
 FAST60MM/S
Slider SpeedWORKING6MM/S
 RETURN45MM/S
 TypeY160L-4
Main MotorSpeed1460R/MIN
 Power15KW
Dimension3200X1700X2850MM
