The NC series tube benders (Pipe bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.1.Reasonable design and simple style, provides the best space for bending.2.Numerical control, c

Featured Products

The NC series tube benders (Pipe bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
1.Reasonable design and simple style, provides the best space for bending.
2.Numerical control, convenient operation make the settings flexible.
3.Using the encoder ensures the bending angle accurate and stable.
4.Multiple processing models stored for different processing programs switched flexibly
5.Automatically Counting and power failure memory function
6.Hydraulic cooling system ensures the equipment long-time work stably under the high temperature
7.The main shaft is specially heat treated.
8.All parts are tested and assembled with strict quality control to meet the specification of ISO 9001 standard.

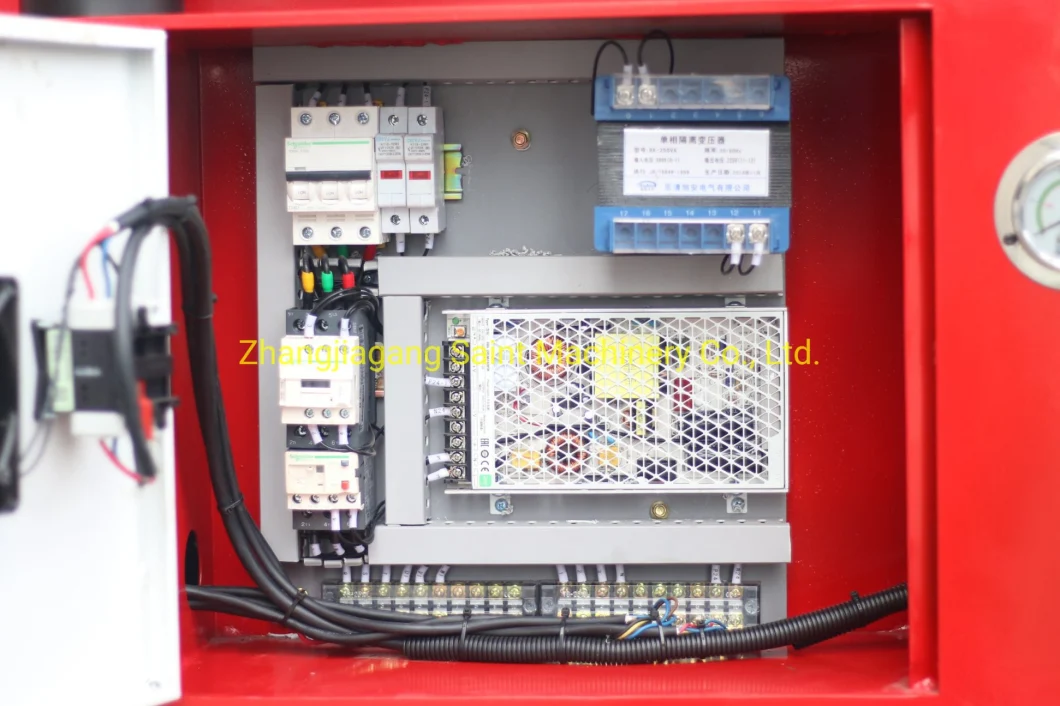

9.The machine adopting solenoid valve and integrated circuit to control individual bending motion separately, which can be extend the life of the hydraulic parts.
10.Suitable for various materials such as steel, stainless, aluminum and copper.

Technical parametersSTB-65NCSTB-75NC
Bending capabilityφ63×3mmφ75×3.5mm
Bending radius50~280mm50~320mm
Min bending radiusR≥1.5DR≥1.5D
Bending angle0~190°0~190°
Valid mandrel length0~2800mm0~3300mm
Bending speed45°/sec25°/sec
Bending accuracy±0.1°±0.1°
Main motor power5.5 Kw7.5 Kw
System hydraulic pressure12MPa14MPa
Size3500×1100×1500mm4200×1300×1600mm
WeightAbout 1450kgAbout 2100kg
