1. CNC SYSTEM: CYBELEC DNC60 OR DNC 600 SYSTEM
2. Servo Valve: Germany Reroxth
3. Pressure Control Valve Group: Germany Reroxth
4. Pump: Germany Eckerler
5. Ball Screw AND Line GUIDE: Taiwan HIWIN
6. Main Motor: Germany Simens
7. Grating Ruler: Italy RSF
8. Oil Connection and Seal: USA PARKER
9. Servo motor: CUNISICO
10. Control Axis: Y1, Y2 AND X AXIS
11. Synchronization: Electronic-Hydraulic Synchronization
12. Stroke Buttom: Germany Schneirder
Main Character and Function
All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.
The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.
The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge. The advantage design and produce style can ensure the machine usage and high precision. The main produce procedure as below(all process under strictly inspection)
Plate stock-------physical and chemical inspection-------Plate Pre-treatment (Rust-Cleaning) ------- CNC flame Cutting-------Cutting the welded joint-------Group Welding-------Gas Shielded Welding-------Ageing treatment-------Milling Planer working-------The Assembly of finished products
The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.
The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, Upright Column, Crossbeam and RAM are good and high in design rigidity. Little deformation between the working table and RAM when work to guarantee good straightness and uniformity in angle.
Machine's main components under guaranteed quality or trustable company
The motor and electronic system elements are all composed from Siemens or Schneider

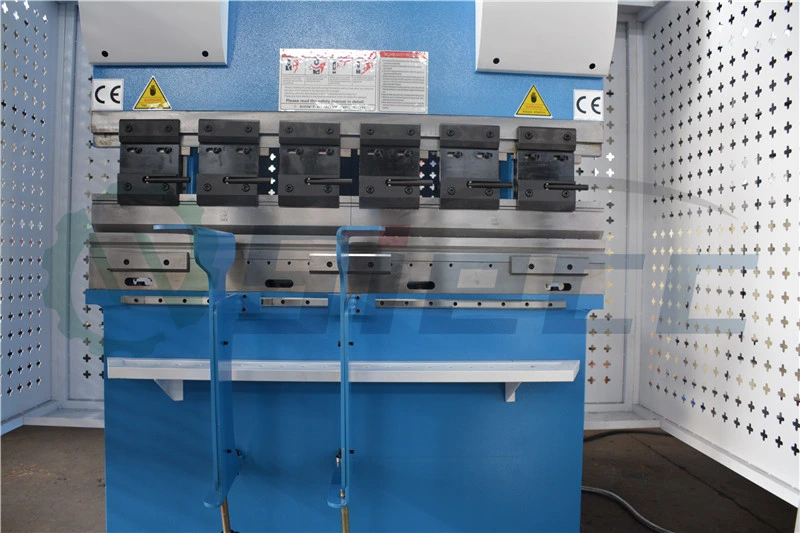

Dies can be designed under clients' requirement. The machine will be equipped standard molds the drawing will be sent. And the non-standard molds can be designed if the clients can provide the dies drawing or the workingpieces, we will design. The upper mold can be done in section.
We use Germany Schneider Stroke Button with high good durable stability, the stroke will be worked stable or be suspending without any sudden down movement which is serious dangerous.
Oil pump can be used from China chengjie enterprise who is used in China's Aircraft industry. Or we can use Germany ECKERLER enterprises.
The seal will be from USA Parker or Japan Valqua company.
The hydraulic system and valve will be from USA OMG or Germany BOSCH company.
The security protection equipment: The design always care about the worker security when operation both working or checking stationary. We equipped both side magnetic door to avoid any penetration inside. At the back, we will provide 3 Section close door with the middle door moveable and the power will be off when the door open, power on when the door close. The light curtain is useful components to aware any finger in dangerous position.
|Nominal force of the ram||2000KN|
|Upright column distance||2600MM|
|Max.stroke of the ram|
|Max.open height between the table and the ram||470MM|
|Max.stroke of block||160MM|
|Speed for the ram stroke||Empty||80MM/S|
|Main motor power||15KW|
|Company||Shining Industrial Enterprise(China) Co., Ltd|
Nantong Brillante Industrial Enterprise Co., Ltd
Edward Pearson Machinery (Shanghai) Co., Ltd
NANTONG LIANZHONG MACHINE CO., LTD
JIANGSU GOLD-PARTNER ENTERPRISE CO.,LTD
|HYDRAULIC PRESS BRAKE MACHINE|
|How about your machine quality?We are worry about the quality.|
SIECC is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
|Whether the machine price can be more discount|
SIECC always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
|How about your manufactory in CHINA|
SIECC located in HAIAN CITY,NANTONG,JIANGSU province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area and totally have about 150 staffs.Rich experience in this field with professional technical supporting and oriented service.
